Russound - D1650 Sixteen-Channel Digital Amplifier

Amplifiers

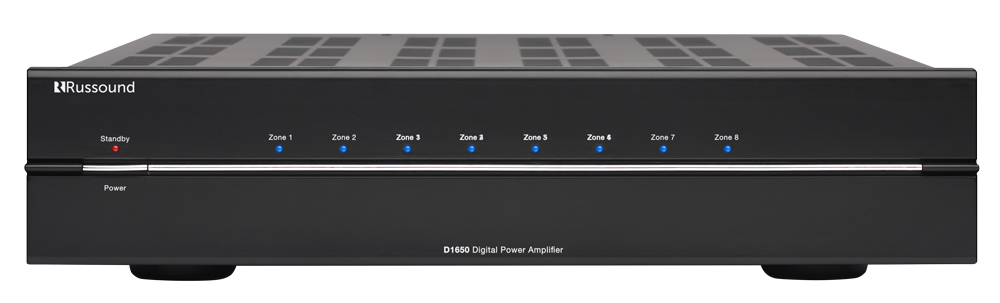

D1650 Sixteen-Channel Digital Amplifier

Category: Multichannel Amplifiers

SKU: D1650

Efficient High Power

More power, more efficient, more robust…just more. For nearly 50 years Russound has been designing equipment to fit an installer’s needs. When we went to redesign the next generation of our ubiquitous multi-channel amplifier line, we approached it from the ground-up. The result is the D-Series, a completely custom-built solution that has all the great features of our historically popular multi-channel amps in a much more refined platform.

The Russound D1650 digital multi-channel amplifier offers the features custom installation professionals demand while offering a lighter weight, smaller chassis and more efficient Class D power. The feature-rich design of the D1650 is ideal for the demands of distributed audio systems and is also compatible with our Russound volume controls. The D1650’s 16 channels are arranged in stereo pairs to provide discreet amplification and custom configurations for each of 8 zones.

Sound Quality

The D-Series amplifiers all have the same legendary Russound sound quality and installer-friendly features customers have come to expect. Ultra-low distortion output (relatively unheard of in other multi-zone amplifiers) allows for clean, undistorted audio even at high listening volumes. A robust protection circuit provides efficient, safe and reliable operation under extreme conditions and protects each amplifier output channel.

Home Theater

The D-Series amps are even up to the rigorous demands of home theater applications, easily transforming into a powerful 160 watt X 8 channel monster (in bridged mode). You can also choose to individually un-bridge pairs for lower power applications such as Dolby Atmos® or surround speakers. As an example you could run a Dolby Atmos 7.1.2 system at 7 channels @ 160W and 2 channels @ 50W. That’s Russound versatility!

Say “no” to the hum

Advanced triggering options allow the amps to operate on demand. Apart from the obvious energy efficiency, there is no amplifier hum on your speakers when the system isn’t in use.

Features

High efficiency, cool running digital amplification
Zones are bridgeable to create flexible power configurations
Global bus input, independent inputs per zone
Global trigger input/output
Independent trigger input/output per zone
Audio sensing with auto-switching delay settings per zone
Robust protection circuitry for operation under extreme conditions
Rack mountable
Class-D power compatible with Russound volume controls

Shipping Dimensions: 21.5" (W) x 9.0" (H) x 22.0" (D), (54.6 x 22.9 x 55.9 cm)
Shipping Weight: 28.8 lbs (13.1 kg)
Amplifier Channels: 16 Channels, 8 independent zones
Bridge Mode: Select Stereo or Bridge mode per zone 8 Ohm only
Frequency Response: 20Hz to 20kHz +1.7/-1dB at 1W output into 8 Ohms
Fuse Rating: 100-120V/T10A, 250V US & Canada, 220-240V/T5A, 250V Europe
Input Impedance: >22k Ohms Line Input
Input Sensitivity:
600 mV for 80W @ 1 KHz 4 Ohm One Zone
700 mV for 50W @ 1 KHz 8 Ohm One Zone
Power Output:
80W /Channel, 1kHz into 4 Ohms, One Zone Driven
50W /Channel, 1kHz into 8 Ohms, One Zone Driven
160W, 1kHz into 8 ohms, Bridge
Power Requirement(s):
North American Model:
100-120VAC 60Hz 600W max
IEC C14 type connector with 3 terminal detachable power cord
International Model (D850i):
220-240VAC 50Hz 600W max
IEC C14 type connector with 3 terminal detachable power cords for UK, Europe, and Australia
Signal to Noise Ratio: >90dB A-weighted
Speaker Connection(s): Detachable speaker terminals support up to 14awg wire
Switching Delay: Three settings, 5 Seconds, 5 minutes, 10 minutes
Trigger Input(s): Bus and Zone @12VDC
Zone Line Input: Line or Bus select switch per zone
