SMZ16-PRE 16x16 Matrix Pre-Amplifier with Streamer

The SMZ16-PRE 16x16 Matrix Pre-Amplifier with Built-in Streamer is a state of-the-art streaming controller that represents the culmination of extensive research and development efforts and is setting new standards in premium multi-room audio solutions. The pre-amplifier features an updated app with multiple enhancements, including graphic equalization, speaker presets, and a host of other features designed to offer unparalleled control and customization, and ensuring quality, support, and security for end-users and installers alike.

Following in the footsteps of our SMZ8 8-Source/8-Zone Controller Amplifier with Built-in Streamer, the SMZ16-PRE features 16 stereo inputs, which can be used in any combination of up to 16 analog, six digital optical, or four digital coax inputs. Though 16x16, the SMZ16-PRE is expandable up to an incredibly powerful 16x96 stereo-channel audio matrix. As with the SMZ8, the SMZ16-PRE boasts an HDMI input (ARC) for connecting to a TV or video source that can be distributed to all zones with low latency to avoid any lip synch issues. The SMZ16-PRE also offers Stereo/Mono Output Options and is controllable with the IPK-1, XTS7 and Russound App.



  Limited Warranty 2 year 01

wificertified

              Connects wC4 Certified CMYK          Integrated with CompassControlPro logo3       URC Total Control Logos half inch tall

RussoundStreamingServices2024





  • Built-in Hi-Res Audio Streamer with all of the popular sources and support for both AirPlay and Google Cast
  • Integrated DSP – 7 Band Graphic EQ with built-in presets for Russound Speakers
  • HDMI Input (ARC) for connecting to a TV or video source with low latency synchronization to avoid lip synch issues
  • 16 Stereo Inputs – Use any combination of up to 16 stereo analog, 6 digital optical, or 4 digital coax inputs
  • Controllable with XTS7, IPK-1 and Russound App
  • Expandable up to 16x96 matrix
  • Rackmountable with Rack Mount Ears Included
  • Two-Year Limited Warranty
  • Network Connectivity: Wired/Wi-Fi 802.11ac
  • Audio Input Connectors: Up to 8 Analog, 6 Dig. Optical, 4 Dig. Coax, 1 HDMI, 1 USB
  • Supports Low Latency Synchronization: Yes
  • Advanced DSP with 7-band EQ: Yes
  • Supports Optional BTC-2X: Yes
  • Russound Certified Installer Required: Yes
  • Rack Mount Ears Included: Yes
  • Power Requirements: 100-120V / 220-240V ~ 50/60 Hz
  • Product Dimensions: 19 in x 17 in x 5.25 in (48.3 cm x 43.2 cm x 13.3 cm)
  • Product Weight: 20.7 lbs (9.4 kg)
  • Shipping Dimensions: 20.9 in x 19.7 in x 15 in (53 cm x 50 cm x 38.1 cm)
  • Shipping Weight: 27.56 lbs (12.5 kg)



ce tuv stamp

Product Manual: SMZ16-PRE Manual

Product Guide: SMZ16-PRE Product Guide

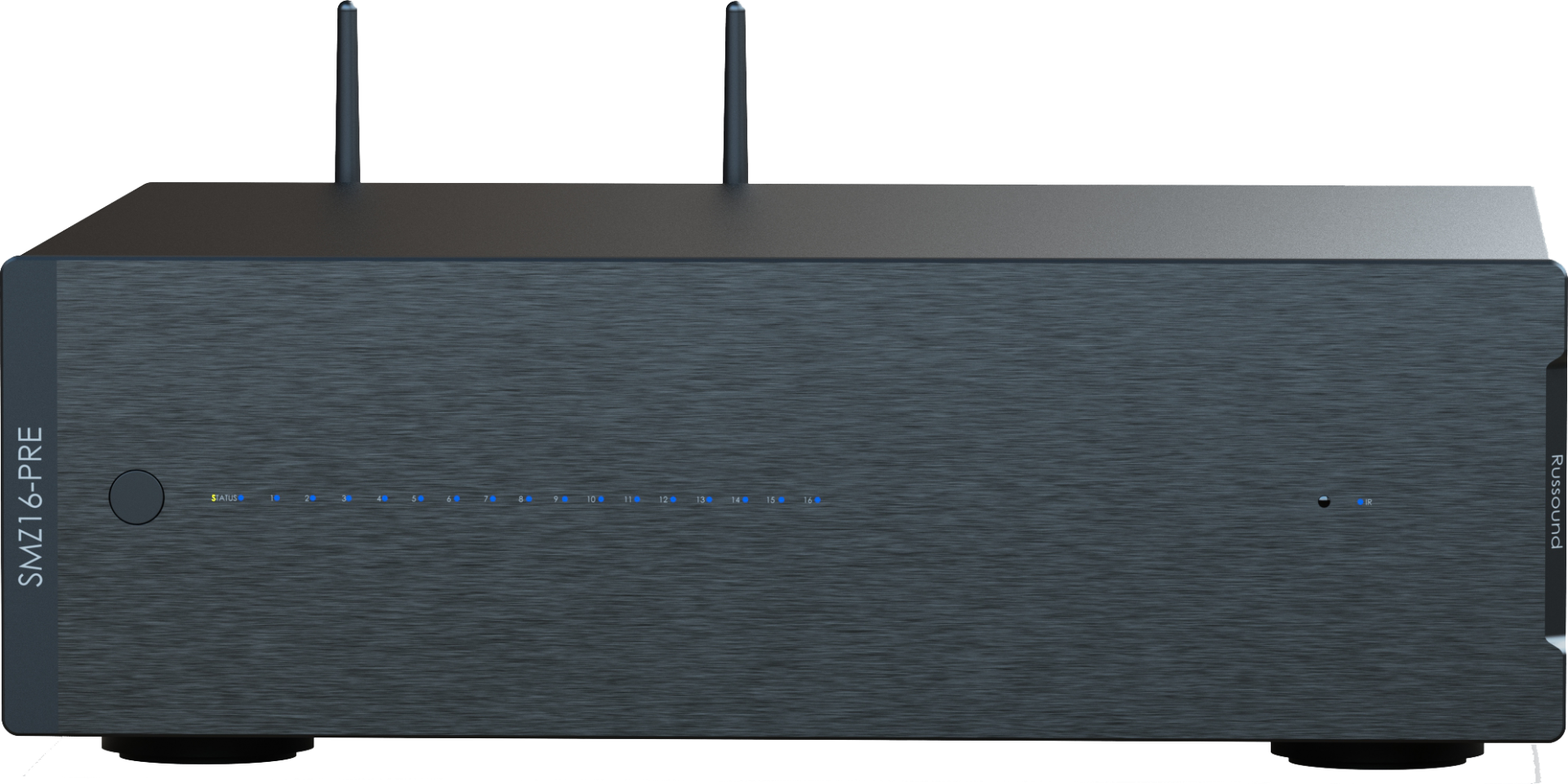

SMZ16-PRE Front: SMZ16-PRE Front.png

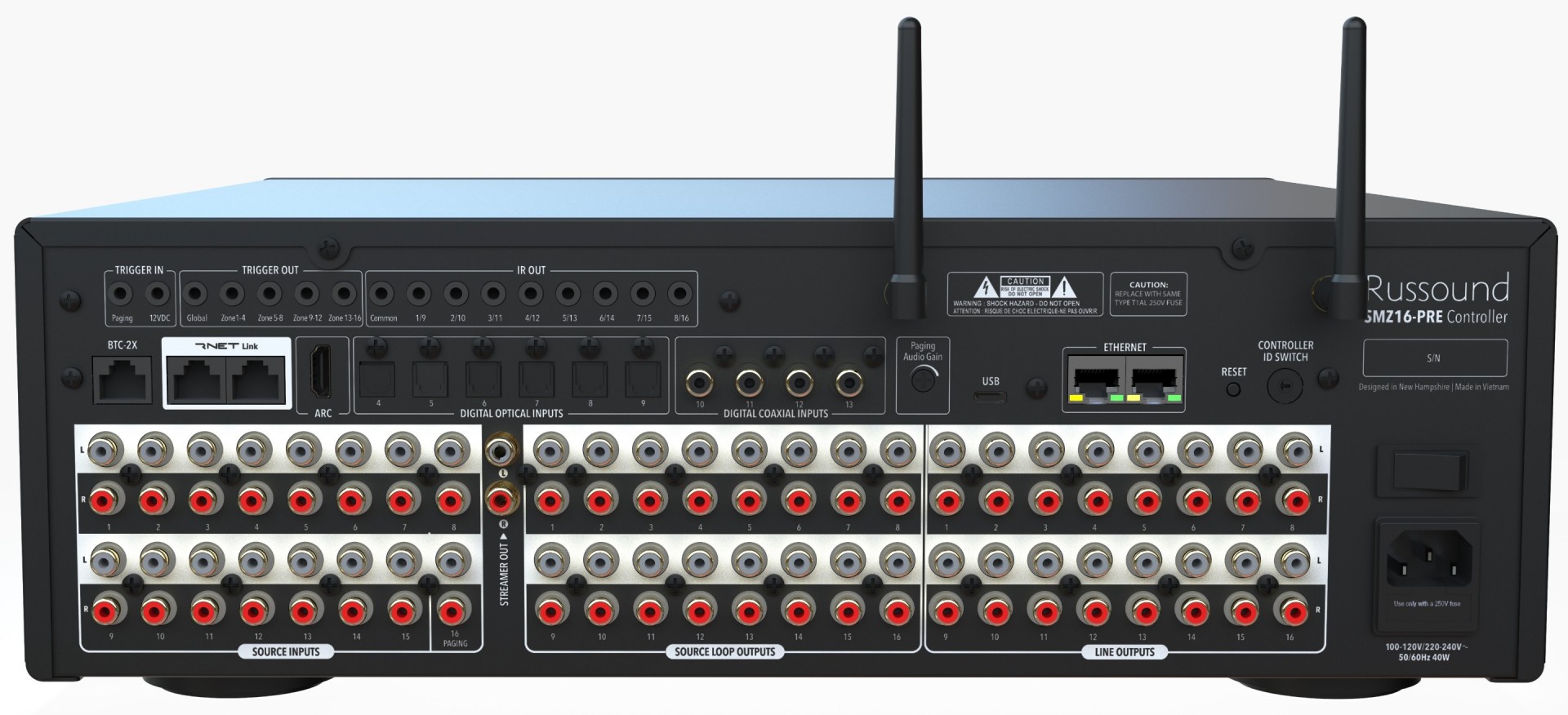

SMZ16-PRE Rear: SMZ16-PRE Rear.png

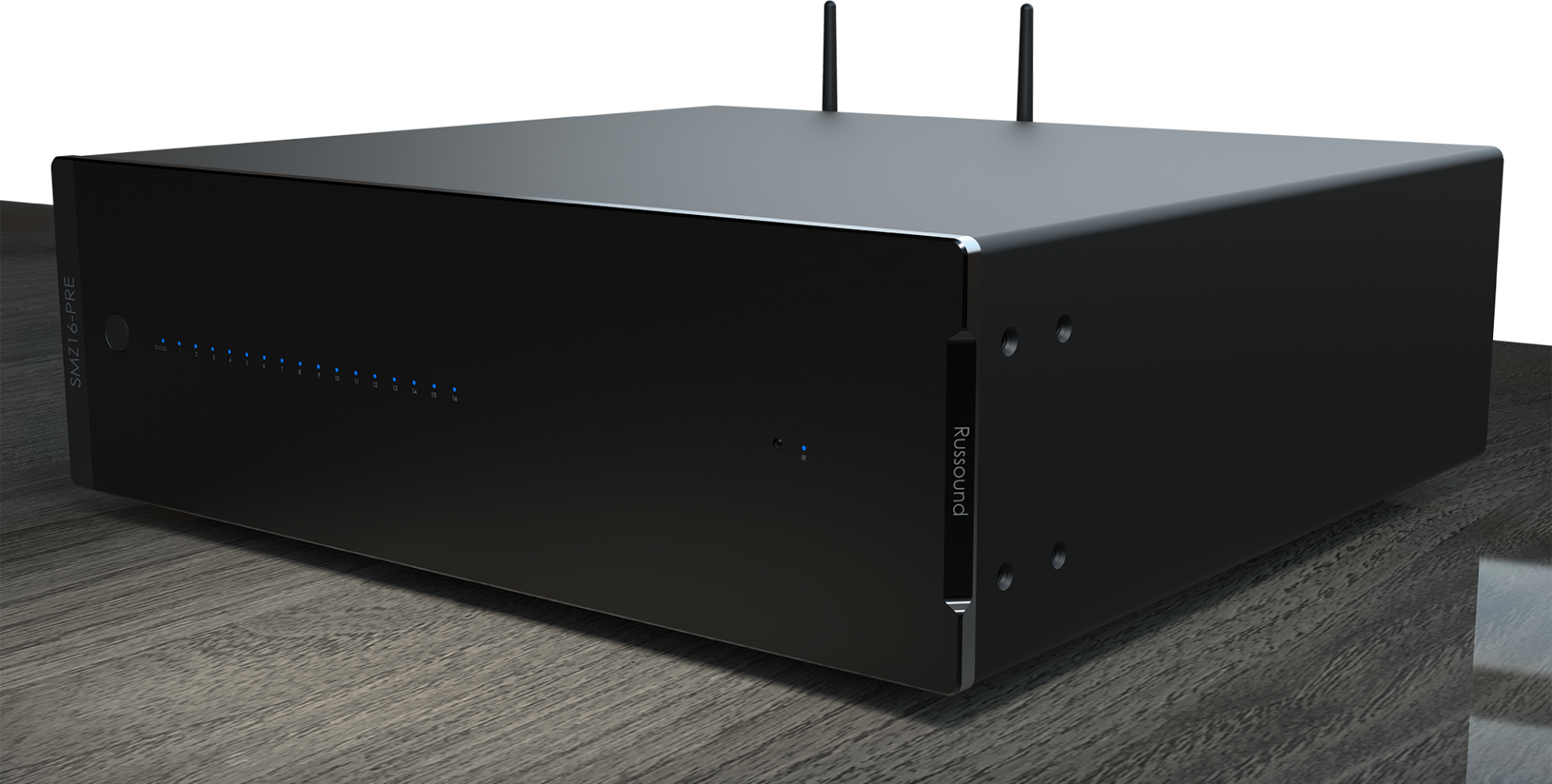

SMZ16-PRE ISO On Table: SMZ16-PRE ISO Front On Table.png

Russound Certified Installer Required logo color

Please note that this product must be installed by a Russound Certified Installer.
If you would like to locate an integrator near you. Please feel free to use our Find a Dealer form.

RCI Program FAQs: RCI Program FAQ
