BSK-2 Bluetooth Source Kit

Category: Source Components

The BSK-2 Bluetooth Source Kit from Russound adds significant new features and functionality from the popular prior model. The BSK-2 is designed to add full-featured Bluetooth audio to any audio system and offers a unique range extension of up to 500' by allowing the remote location of the transceiver module anywhere in the home. The BSK-2 is comprised of two components, the BTC-2X Remote Transceiver and the BTC-2 Audio Hub that is used for audio wiring and power connections.

The BSK-2 is recommended for all installations where the ideal location of the Bluetooth source device, a customer's phone or tablet, is located far away from their audio equipment. The BSK-2 is also used to add multiple Bluetooth inputs to a Russound MCA-66 or MCA-88 Controller

The BTC-2X Remote Transceiver is designed to add a single source of Bluetooth audio to the Russound MCA-Series of controllers which have all of the audio and power connections to support it already built-in. The BTC-2 audio hub is therefore not required for a single source offering cost savings to easily add Bluetooth to Russound controllers. The BTC-2X can also be used as a standalone Bluetooth audio source when the extra 500' of extension is not required.

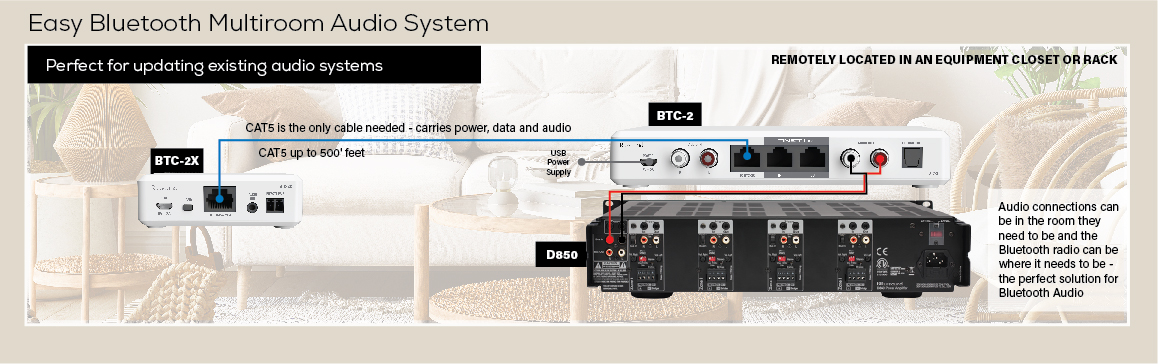

EasyBT BTC 2X BSK 2

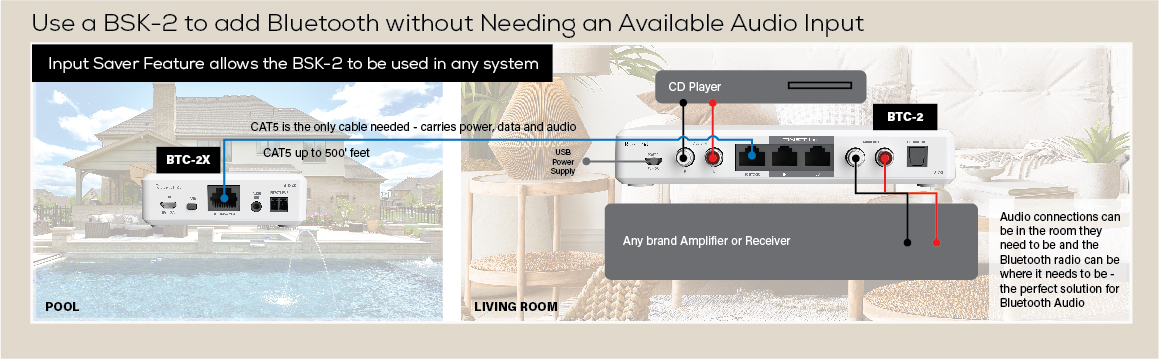

AddAddtlBT NoAudioInput BTC 2X BSK 2

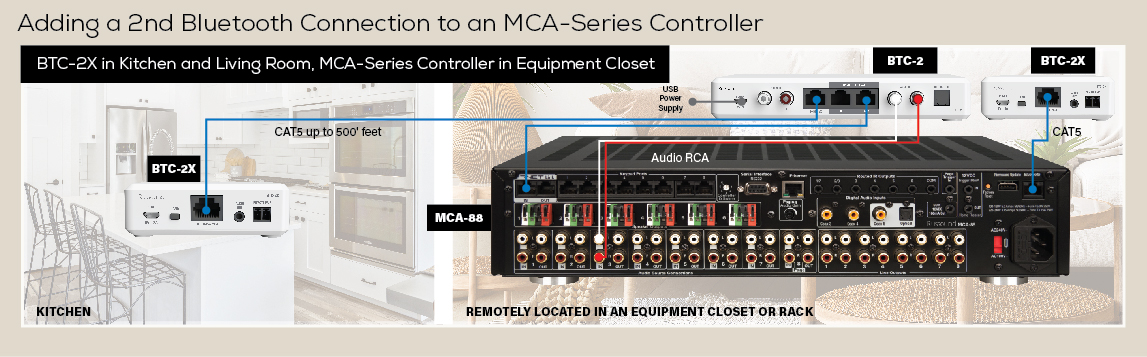

2ndBTtoMCA BTC 2X BSK 2

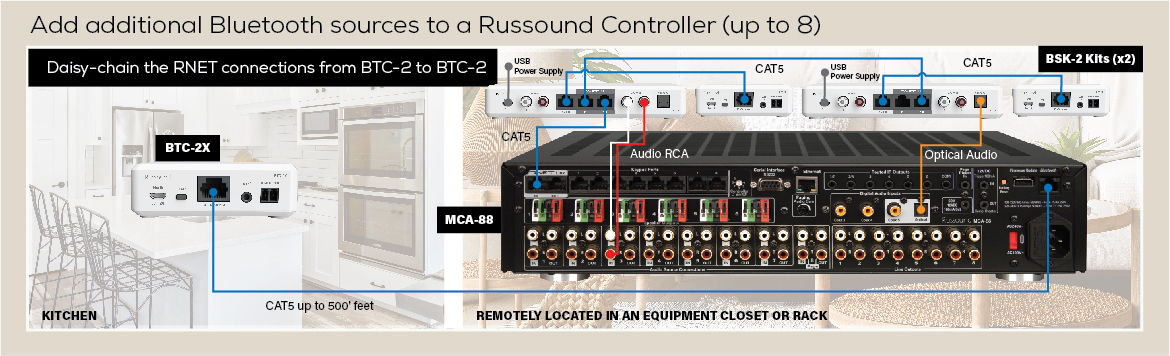

BTtoController BTC 2X BSK 2

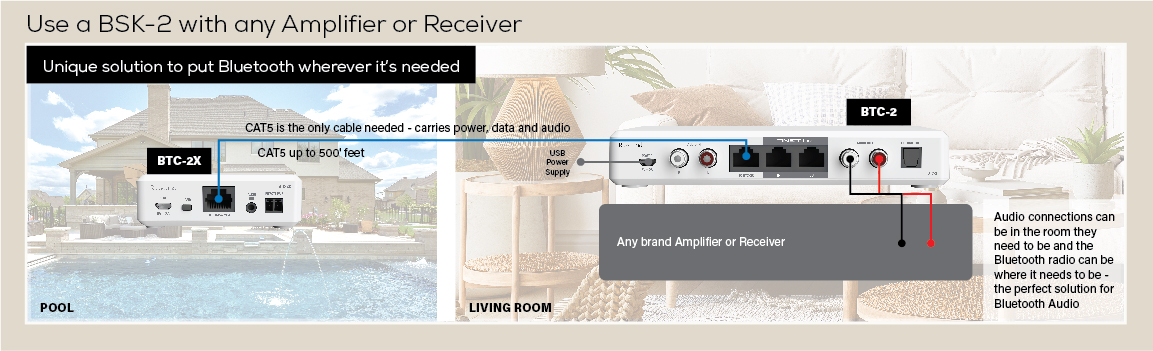

UseBSK2 Amplifier Receiver BTC 2X BSK 2

RemotePairing BTC 2X

For questions about the BTC-2X Naming App visit our FAQ Page

Bluetooth CM ColorBlack



  • Bluetooth Extendibility - Bluetooth Remote Transceiver can be located up to 500' from the audio connection using CAT5/6 cable (not included)
  • Analog and Digital Output - Ensures compatibility with any audio system
  • Input Saver Design - Add Bluetooth audio to any system without requiring a free input.
  • Automatic signal sensing will change the input from another device to Bluetooth when an audio signal is present
  • Automatic or Manual Pairing Modes - In addition to automatic pairing for ease of use in most homes, allows installation in businesses, MDU's or anywhere that requires precise control of pairing
  • Bluetooth 5.1 - Improved Audio Quality and Range

Extra Features when used with a compatible Russound MCA-66 or MCA-88 Controller

  • Track Info, and App Control - When using the Russound app or touchscreens, track metadata info and playback control are available
  • Multiple Bluetooth Inputs - The RNET connection allows for up to 8 Bluetooth receivers to be used with a compatible Russound controller in a home
  • Bluetooth Version: 5.1
  • Range*
    • Indoors - Up to 65' (20m)
    • Outdoors - Up to 195' (60m)
  • Connections: RJ-45, Stereo RCA In, Stereo RCA Out, Optical Out
  • Pairing Modes: Automatic, Manual, and via Contact Closure
  • Max CAT5/6 Cable Length to BTC-2X: 500' (152m)
  • Audio Out: 3.5mm Stereo Out (Cable Not Included)
  • Power Requirements: 5VDC microUSB (110-220VAC Power Supply Included)
  • Dimensions (L x W x H): 3.375" (8.6 cm) x 2.25" (5.7 cm) x 1.13" (2.9 cm)
  • Weight: 0.3 lbs (.14 kg)
  • Warranty: 2 Years



ce stamp

BSK-2 ManualBSK-2 Manual

BSK-2 Product BriefBSK-2 Product Brief.pdf

Integrators: Login for additional documentation



BSK-2 ImageBSK-2 Front

BSK-2 Rear Image: BSK-2 Rear

BTC-2X Front ImageBTC-2X Front

BTC-2X Rear ImageBTC-2X Rear
